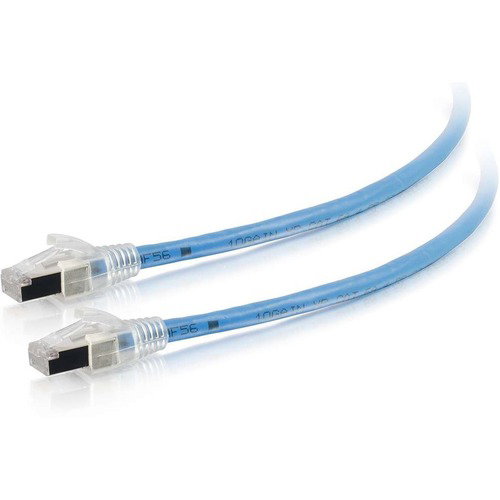

C2G 200ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum - 200 ft Category 6a Network Cable for Network Device - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Shielding - Gold
C2G 200ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum - 200 ft Category 6a Network Cable for Network Device - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Shielding - Gold
Description
This Snagless Discontinuous Shielded Cat6a patch cable is ideal for use with HD A/V applications such as HDBaseT extenders and Power over Ethernet (PoE) applications requiring higher levels of current. The HD A/V application is perfect for conference rooms and digital signage where greater distance requirements are needed between a source and a display. Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
These cables have been tested and validated to guarantee they consistently meet the highest industry performance and safety standards. The uniquely designed Isolation Wrap contains discontinuous sections of metallized material, held in place by a polymeric layer. These cables have a nominal 0.265" diameter that allows for higher cable density and smaller bend radius than other Cat6a cable products. These cables are also designed for Power over Ethernet (PoE) applications type 1-4 according to IEEE 802.3bt draft D1.2.
These cables have discontinuous metallic shielding elements surrounding the inner 4-pair core of the cable. The effect of this approach is to attenuate both electromagnetic signals that emanate from the cable core and the potentially interfering electromagnetic signals that are generated by other sources. The metallic shielding elements are designed to be discontinuous to avoid any need for grounding, which is a requirement for shielded cable designs, and have been shown to provide superior Alien Crosstalk performance in comparison to conventionally designed Category 6A UTP cables.
Specifications
26121609
7.1lb
5in
11.5in
11.5in
23 AWG
Snagless
C2G
C2G
Patch Cable
200 ft
Category 6a
Connector Cables
1 x RJ-45 Network - Male
1 x RJ-45 Network - Male
RJ-45 Network - Male
RJ-45 Network - Male
Gold
United States
10 Gbit/s
Network Device
Yes
RoHS
Yes
Molded
Lifetime
C2G
43176
Blue
200ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum
Network Cable
Yes
6.99 lb
