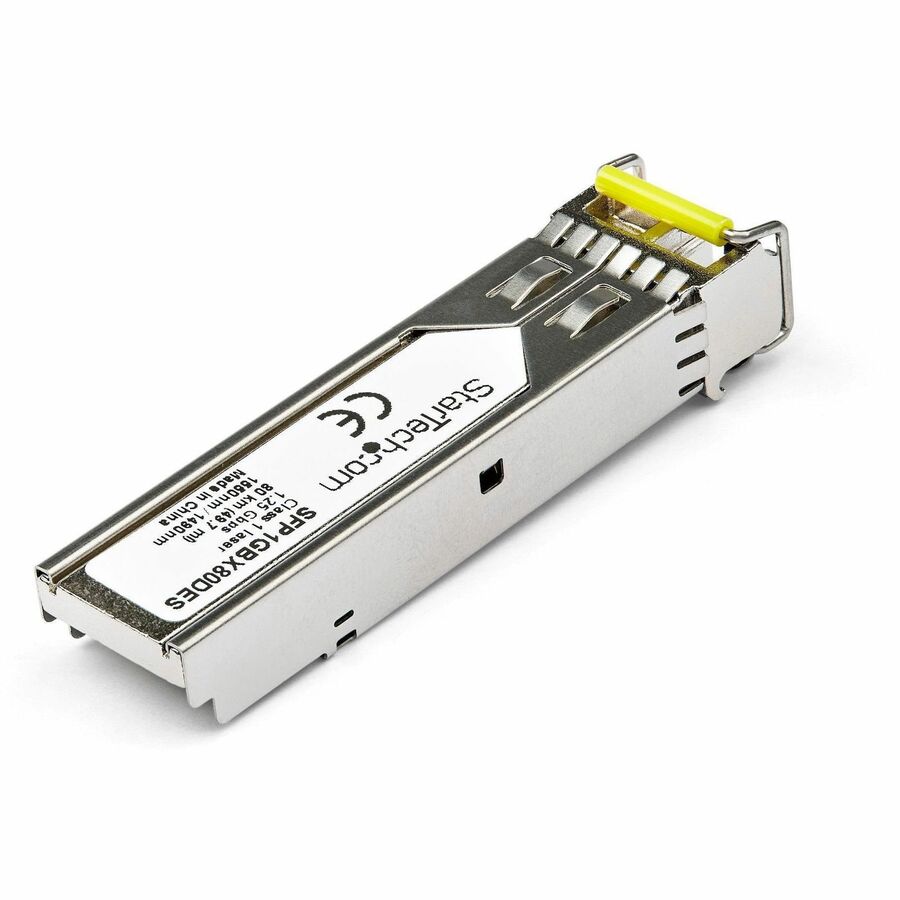

StarTech.com Dell EMC SFP-1G-BX80-D Compatible SFP Transceiver Module - 1000Base-BX80 - For Data Networking, Optical Network - 1 x LC Duplex 1000Base-BX80-D Network - Optical Fiber - Single-mode - Gigabit Ethernet - 1000Base-BX80-D - Hot-swappable - 1 Eac
Item Code: STCSFP1GBX80DES
Manufacturer StarTech.com
- 100% DELL EMC SFP-1G-BX80-D COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-D
- 1Gbps
- 10G Bi-Directional Downstream
- Single Mode (SMF)
Compare
StarTech.com Dell EMC SFP-1G-BX80-D Compatible SFP Transceiver Module - 1000Base-BX80 - For Data Networking, Optical Network - 1 x LC Duplex 1000Base-BX80-D Network - Optical Fiber - Single-mode - Gigabit Ethernet - 1000Base-BX80-D - Hot-swappable - 1 Eac
Item Code: STCSFP1GBX80DES
Manufacturer StarTech.com
- 100% DELL EMC SFP-1G-BX80-D COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-D
- 1Gbps
- 10G Bi-Directional Downstream
- Single Mode (SMF)
Description
Technical Specifications:
- Wavelength: 1550nmTX/1490nmRX
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 80 km (49.7 mi)
- Power Consumption: Low power consumption
- DDM: Yes
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Lead Time
Ships in 6-10 Business Days
UNSPSC Code
43201404
Weight
0.09lb
Height
1.5in
Width
4in
Length
4.5in
Catalog Page Number
NEW
Application/usage
Data Networking
Brand
StarTech.com
Brand Name
StarTech.com
Compatibility
MSA Compliant
Connector Type
LC
Country of Origin
China
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Fiber Mode Supported
Single-Mode
Form Factor
Hot-swappable
Interfaces/Ports Details
1 x LC Duplex 1000Base-BX80-D Network
Limited Warranty
Lifetime
Manufacturer
StarTech.com
Manufacturer Part Number
SFP1GBX80DES
Manufacturer Website Address
http://www.startech.com
Media Type Supported
Optical Fiber
Network Technology
1000Base-BX80-D
Packaged Quantity
1 each
Product Name
Dell EMC SFP-1G-BX80-D Compatible SFP Transceiver Module - 1000Base-BX80
Product Type
SFP (mini-GBIC)
Total Number of Ports
1
